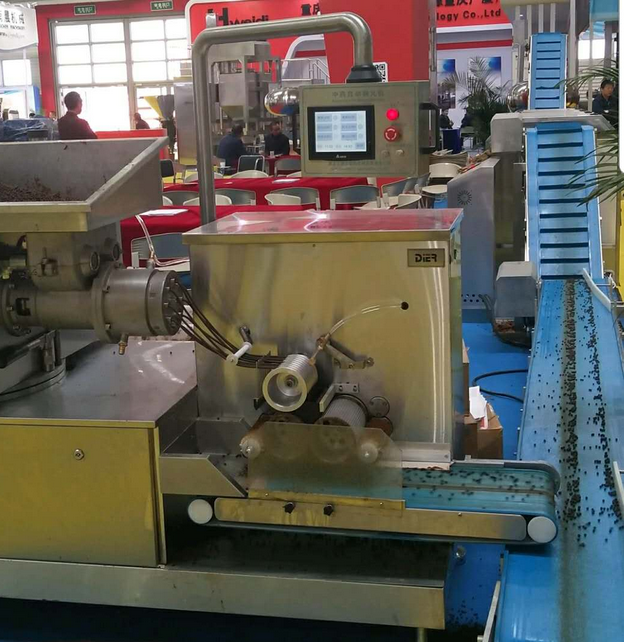

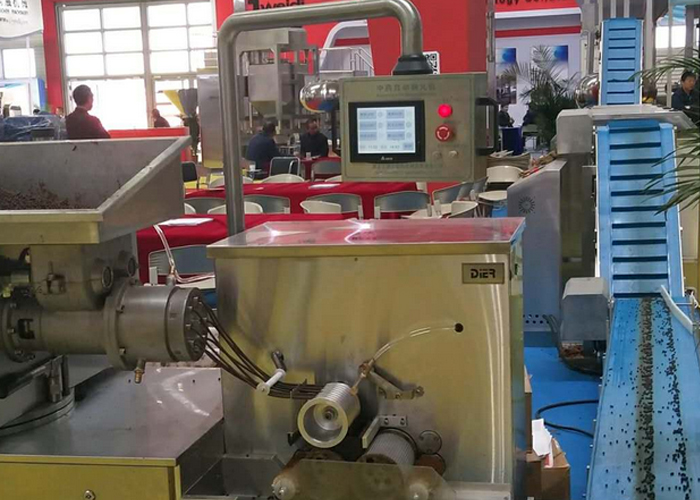

Introduction of Chinese medicine pill making machine:
Chinese medicine pill making machine is a kind of equipment specially used for producing Chinese medicine pills. It adopts advanced automation technology and can produce standard pills by precise proportioning and molding of Chinese herbal powder. Chinese medicine pill making machine can adjust production parameters and is suitable for the production of Chinese medicine pills of different types and specifications.
Advantages of Chinese medicine pill making machine:
1. The parts and appearance surfaces that come into contact with the medicine are made of stainless steel, with no dead angles on the working surface, good sealing, easy disassembly and cleaning, and meet GMP requirements.
2. The conveying of Medicine pill making machine adopts worm gear reducer, and the transmission is stable and reliable.
3. The pill rolling and pill cutting mechanism of the pill making part is a gearbox, and the machine parts are well lubricated. The cutting speed can be adjusted by the stepless transmission knob, so that the roller can obtain a speed of 6-30 rpm until the cutting speed matches the demoulding speed.
4. The feeding port of Medicine pill making machine is large, the pressing plate is turned over and pressed tightly, and the loading is convenient to prevent the material from falling. The hopper is divided by the flap shaft and the upper and lower boundaries, which is very convenient to disassemble for cleaning.
5. Electric heating adopts electric heating tube, which is safe and reliable, and runs smoothly.
6. Alcohol is used to drip the medicine strips, and a brush is installed on the outside of the pill making knife to prevent the knife from sticking. Alcohol is installed in the square box of the drug removal mechanism, and the amount of alcohol is adjusted by the ball valve.
Maintenance points of Chinese medicine pill making machine:
1. Clean the powder residue after each production to keep the machine clean and avoid cross contamination.
2. Regularly add lubricating oil to moving parts (such as transmission system and mold) to reduce wear.
3. Check fasteners to ensure that screws and fasteners are tightened to prevent loosening from affecting operation.
4. Regularly check the electrical system and lines to ensure normal operation.
5. Regularly check the mold and pressing system to avoid wear and tear affecting the quality of pills.
Working principle of Chinese medicine pill making machine:
After mixing the Chinese medicine powder according to the proportion, it is automatically fed into the silo, and then evenly distributed into the forming mold through the vibration or screw conveying system. The machine uses the mold to press the powder to form the initial shape of the pill under pressure, and then the pill is removed by the automatic demoulding device and collected into the medicine storage tank through the conveyor belt. Our Chinese medicine pill making machine is also equipped with an automatic metering and quality inspection system to ensure that the weight and size of each pill are consistent. The whole process is automated and efficient, and can stably produce pills that meet the standards, suitable for large-scale production.

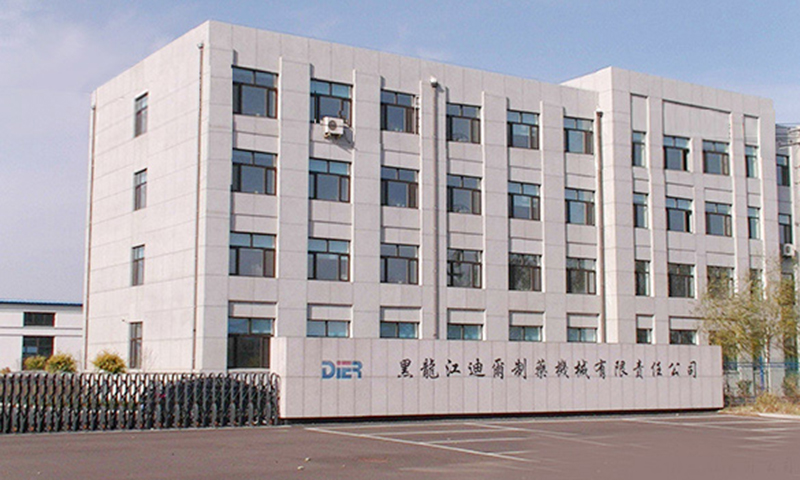

About Dier：
Founded in 1971 and transformed into a joint-stock company in 1997, Dier is a leading manufacturer of pharmaceutical machinery for traditional Chinese medicine pills in the domestic market. And we are also one of the Top 3 manufacturers of suppository production machine in the global market. Our wide range of product includes complete traditional Chinese medicine pill production line, complete suppository production line, drying and sterilizing equipment, packaging machine (bottling, bag packaging and cartoning), powder blending and mixing machine, etc., which can serve a variety of industries such as pharmaceutical, food processing, chemicals and biological engineering.
