Introduction of nine-granule suppository filling and sealing machine:

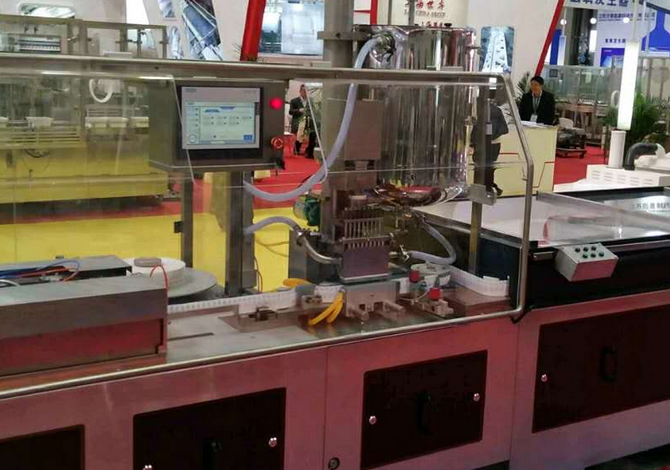

Introduction of nine-granule suppository filling and sealing machine: The nine-granule suppository filling and sealing machine has a compact appearance design, adopts a modular design, and is made of high-strength materials. It is an efficient and automated equipment widely used in the filling and sealing process of suppositories. The nine-granule suppository filling and sealing machine adopts advanced gravity weighing principle, and accurately controls the amount of each filling through weighing sensors to ensure filling accuracy and consistency. It is an ideal production equipment for pharmaceutical companies.
Features of suppository filling and sealing machine:
1. The suppository filling and sealing machine uses the principle of gravity weighing to control the filling amount. The weighing sensor provides a signal to ensure that the filling amount is highly consistent each time.
2. The suppository filling and sealing machine is equipped with a multi-stage filling system and adopts segmented control to ensure filling efficiency and accuracy, avoiding liquid overflow or uneven filling caused by too fast or too slow filling process.
3. In order to avoid wire drawing or dripping when filling viscous liquids, the suppository filling and sealing machine is equipped with a leak-proof device during design.
4. The suppository filling and sealing machine is equipped with a PLC control system, which makes the filling process highly automated, can greatly improve production efficiency, and to a certain extent can also ensure the consistency of pills, in line with the standards of the pharmaceutical industry.
Working principle of suppository filling and sealing machine:
Principle of suppository filling and sealing machine uses the principle of gravity weighing to control the amount of each filling. During the filling process, the weighing sensor detects the filling amount in real time and transmits a signal to the PLC controller. The PLC controller adjusts the opening time of the filling valve according to the signal, thereby accurately controlling the amount of material filled each time. The filling process is divided into three stages.
The filling process is divided into three stages:
1. Fast filling stage: At the beginning of filling, the filling valve is fully opened and the material is filled quickly.
2. Medium-speed filling stage: When the filling amount reaches the preset fast filling amount, the filling valve automatically closes and switches to medium-speed filling to continue to accurately control the filling.
3. Slow filling stage: When the filling reaches the medium-speed filling value, the filling valve closes.
Our factory:
In 2017, Heilongjiang Deere Pharmaceutical Machinery Co., Ltd. invested nearly 40 million new plant put into use, covering an area of 22,000 square meters, construction area of about 15,000 square meters, there are a variety of CNC and professional machining equipment nearly 100 sets (sets), the company's main products are: Traditional Chinese medicine pill production complete sets of equipment, suppository production complete sets of equipment, microwave drying sterilization complete sets of equipment and ejiao slicing complete sets of six series, more than 30 varieties, its product quality, technical content, structural performance, technical indicators are in the domestic leading level, some products market share has reached 50%-80% of the domestic market. And some products are exported to the United States, Mexico, Yemen, Russia, South Korea, Indonesia, Thailand and other countries and Hong Kong, Taiwan region. Among all kinds of products, 62 patents have been approved and accepted, including 10 invention patents.
