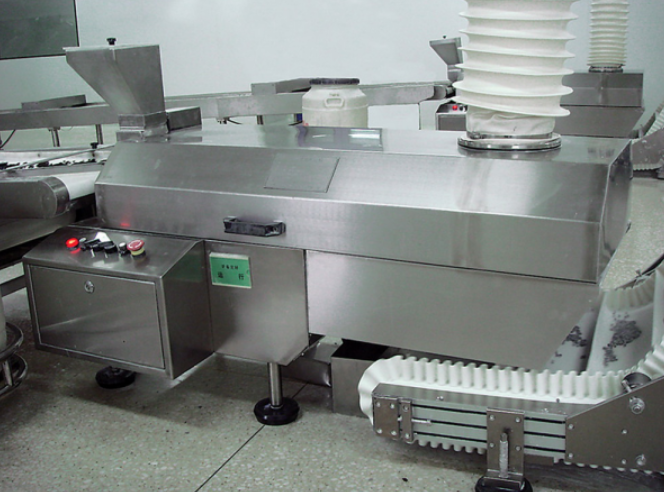

Introduction of the powder cloth roller machine:
The powder cloth roller machine is engineered to deliver high-efficiency, automated pill polishing and powder recovery, optimizing pharmaceutical production processes. The powder cloth roller machine ensure smooth, non-stick pills while also efficiently recycling powder for minimal waste, making it an ideal choice for pharmaceutical manufacturers focused on quality, productivity, and sustainability.
Features of powder cloth roller machine：
1. The powder cloth roller machine is equipped with an automatic powder recovery system, which can automatically return the residual powder to the roller box through the powder scraping device and the powder leakage hole to achieve powder recycling.
2. The powder cloth roller machine can complete the polishing and powder coating of large quantities of pills in a short time, greatly improving work efficiency.
3. The highly automated design of the powder cloth roller machine reduces manual intervention, improves productivity, reduces operational errors, and improves the overall quality of the product.
4. The powder cloth roller machine has a wide range of applications and strong flexibility. It can handle pills of different sizes, and can smoothly coat small to medium-sized pills with powder.
Working principle of cloth roller machine:
The cloth roller machine stores the powder in the hopper, through the scraping powder transport, and puts the powder into the rotated hopper evenly. At the same time, the cloth roller machine puts the pills, which are made by the pill machine, into the tumbling box. The tumbling box rolls continuously so that the surfaces of the pills achieve a non-stick effect between them. Then, by the export of transportation, the cloth roller machine moves the pills to the next procedure. At the same time, the powder inside the The tumbling box moves into the interlayer automatically, depending on the rotation of the tumbling box, through the scraping powder chips, and the powder leaking through the holes re-enters the tumbling box, adding more powder to the pills. The cloth roller machine automatically recovers the remaining powder to achieve re-use with good results.
Technical parameters:
1.Production capacity≤300kg/h(ф4～ф10 pill)
2.The power quantity by scape: 1-3kg(according to the actual demand)
3.Power of engine：Single-phase AC220V
4.Power consumption: 90W/h
5.Overall dimensions :1300×560×800mm

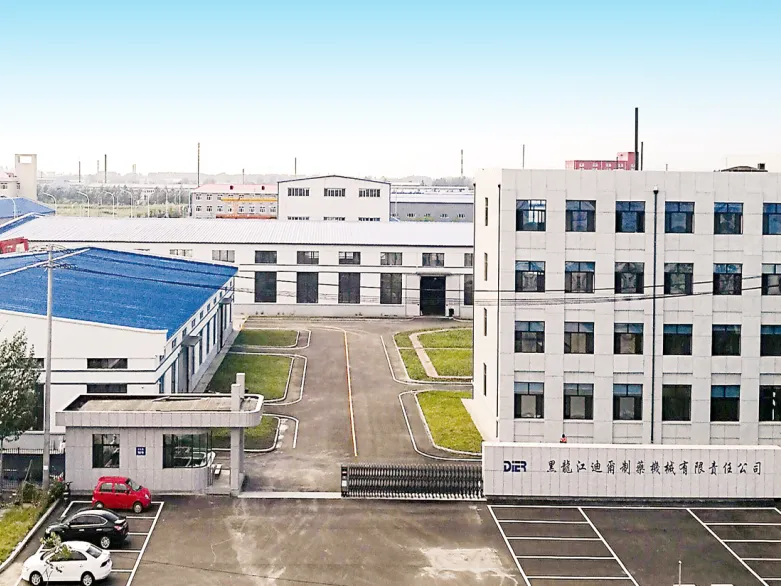

About us：
Our company main products include six series of products: single and complete sets of equipment for the production of small pills and big pills of traditional Chinese medicine, suppository production equipment, microwave and hot air drying and sterilization equipment, pharmaceutical packaging and complete equipment for Ejiao production. The products have been exported to more than 20 countries and regions, with nearly 80 national invention and utility model patents. The main products have been funded by the National Innovation Fund for Small and Medium-sized Enterprises and the National Torch Project, and have won many national and provincial scientific and technological progress awards. It is the drafting unit of many national industry standards such as "Automatic Chinese Medicine Pill Machine", "Automatic Suppository Filling and Sealing Unit", "Plastic Bottle Packaging Production Line", and "Microwave Drying Sterilizer".
