This machine is a key screening device in the production process of traditional Chinese medicine pills. It can be used to screen wet pills and automatically sort the pills by their diameters, ensuring the measurement tolerance and uniformity of the finished pills. It can be widely applied in the screening of traditional Chinese medicine pills and other round materials in various industries.
This machine can be used alone or in conjunction with pill-making machines and elevators. The elevator lifts the finished pills and they enter the rotating drum screen through a chute. The holes in the screen are made into square, round or elliptical shapes according to the required pill diameters. The two sections of the drum screen rotate clockwise driven by the friction rubber wheels, and various pills that meet the requirements are sorted out respectively. During the screening process, there may be pills whose diameters are exactly the same as the size of the screen holes, causing them to get stuck in the holes. At this time, the brush or silicone rubber roller installed on the side of the drum screen can push the pills out.

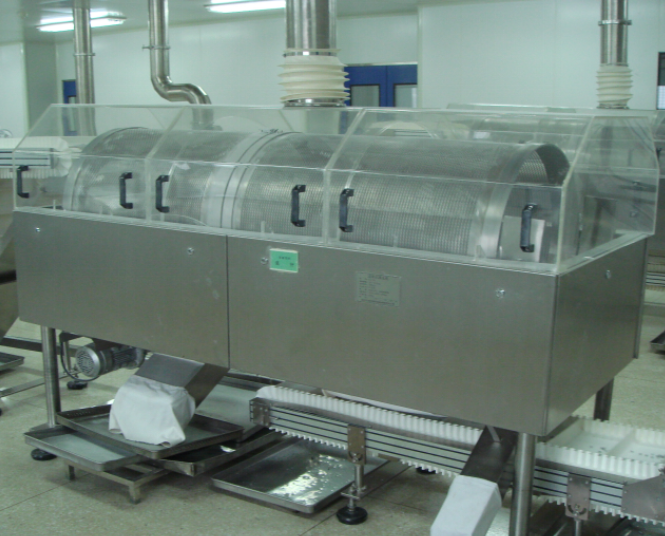

Introduction of roller style automatic screening pill machine:
SWJ-Ⅱ roller style automatic screening pill machine is the main screening equipment for Chinese medicine pill making. This machine can be used for both dry and wet pill making methods. It can automatically screen pills of different particle sizes to ensure the size error and uniformity of the finished pills. Roller style automatic screening pill machine is widely used in the screening of Chinese medicine pills and the screening of round materials in other industries.
Working principle of automatic screening pill machine :
Roller style automatic screening pill machine can work alone or in conjunction with a pill making machine and an elevator. The finished pills are lifted by the elevator, passed through the chute, and enter the drum screen. The lengths of the drum screens are 400mm, 800mm, and 400mm respectively. The inner hole diameter is made into a plum blossom shape according to the required pill diameter. The three-section drum screen rotates around the central axis for one circle driven by the active shaft disc to screen out various pills that meet the requirements. During the screening process, if the pill diameter is the same as the sieve hole diameter, the pill is clamped on the sieve hole and is squeezed out by the fixed brush installed on the side of the drum screen.
Technical parameters of the automatic screening pill machine:
| Productive capacity | Dry pill：200-300kkg/h 、 et pill：100-200kg/h |
| Qualification of screening | Can screen∮3-∮12mm various diameter of honey pill、water pill、water-honey pill、concintration pill and paste pill etc. |
| Diameter of roller | ∮700mm length：1800mm |
| Total power | 550kw |
| Weight | 300kg |
| Overall dimensions | 2000×1000×1500mm |

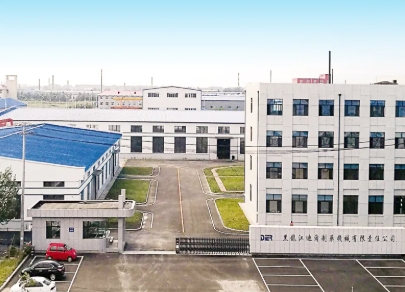

About us:
Heilongjiang Deere pharmaceutical machinery co., LTD was established in 1971, has a history of 53 years, the staff working here are skilled, the production and processing of parts strong and durable.
In this ever-changing era, the machinery we produce not only keeps up with the pace of The Times, realizes fully automated processing, and has guaranteed quality, so that new and old customers can feel at ease.
