Product Introduction:

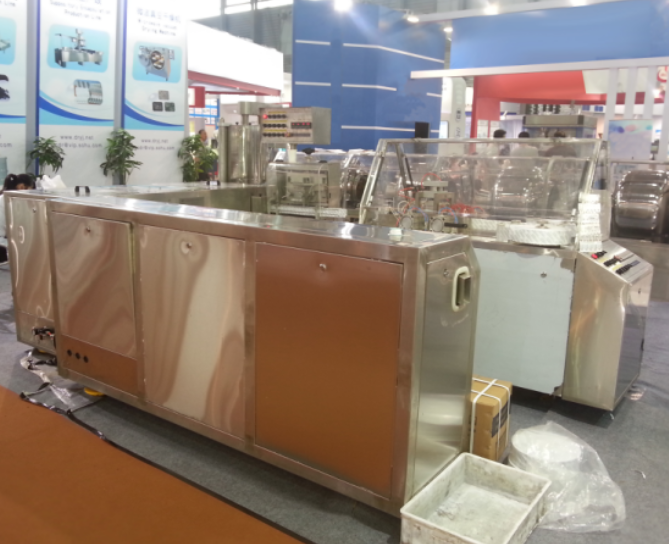

Omni-automatic Suppository Filling-sealing Subassembly is an advanced automated equipment designed for the filling and sealing process of suppositories and is widely used in the pharmaceutical industry. U Type Omni-Automatic Suppository Filling-Sealing uses fully automated operation to accurately fill the drug into the suppository mold and ensure the sealing and integrity of each suppository through an efficient sealing system. U Type Omni-Automatic Suppository Filling-Sealing's precise control system can automatically adjust the filling volume and sealing pressure to ensure product consistency and high quality. U Type Omni-Automatic Suppository Filling-Sealing is also equipped with an intelligent monitoring system to detect various parameters in the production process in real time, automatically identify and remove unqualified products, and ensure that each batch of products meets the standards.
Working principle:
Rolled plastic sheets (such as PVC or PVC/PE) are formed by positive pressure blow molding and automatically enter the filling process. The evenly stirred liquid medicine is automatically poured into the suppository mold by a high-precision metering pump and accurately filled according to the set requirements. After the liquid medicine is cut into multiple equal-length strips, it undergoes multiple low-temperature shaping to complete the transformation from fluid to solid and form solid suppository particles. Omni-automatic Suppository Filling-sealing Subassembly processes suppositories into finished products that meet standards through processes such as shaping, sealing, batch numbering and shearing. Omni-automatic Suppository Filling-sealing Subassembly's fully automated production equipment ensures the high quality and production efficiency of suppository products.
Product advantages:
U Type Omni-Automatic Suppository Filling-Sealing uses a high-precision metering pump to ensure that the filling amount of each suppository is accurate and consistent.
The entire production process is automated, reducing manual intervention and improving production efficiency.
The low-temperature shaping process ensures that the drug is evenly converted into solid suppositories with stable quality.
U Type Omni-Automatic Suppository Filling-Sealing covers multiple processes such as filling, shearing, shaping, sealing, and batch numbering, with integrated production to improve production line efficiency.
The equipment is equipped with an intelligent monitoring system to detect the production process in real time and automatically remove unqualified products.
Technical Parameter:
1、Production：6000—10000granulations per hour
2、Dosage per granulation：1-5g per granulation（also can be made special qualification）
3、Dosage difference allowed：±2%
4、Suppository form：bullet form、torpedo form、duck-mouth form and other special form.
5、Adapting group：demi-synthesis fatty acid lipo-glycerol、glycerol gelatin、polyethylene glycoletc.
6、Volume of storing fluid vessel：50L
7、Height of wadding：1400mm
8、Electric pressure of power：three- phases AC 380V
9、Total power:13KW
About us:
Heilongjiang Deere Pharmaceutical Machinery Co., Ltd. was founded in 1971 and has developed into a leading manufacturer of Chinese medicine pharmaceutical equipment in China. The company has 80 patents, and its products include small and large pill production lines, suppository production equipment, and pharmaceutical packaging equipment. Heilongjiang Deere Pharmaceutical Machinery Co., Ltd. focuses on technological innovation, and its products are widely used in the domestic and foreign pharmaceutical industries. It has established strategic partnerships with well-known domestic and foreign companies and universities. Heilongjiang Deere Pharmaceutical Machinery Co., Ltd. is committed to providing customers with the most advanced Chinese medicine equipment and technical support to promote the continuous progress and development of the industry.
